"Lighting can provide function in several ways. There’s the obvious functions of creating useful light but there are also more subtle functions that address   emotional needs."



Design Objective
To design a lamp that has physical beauty when turned off, and celebrates the beauty of light when it is turned on. The lamp must be designed for a specific location with a specific function. The lamp is to be constructed out of minimal materials, be over 6 feet tall, and is to be constructed within a specific timeframe.

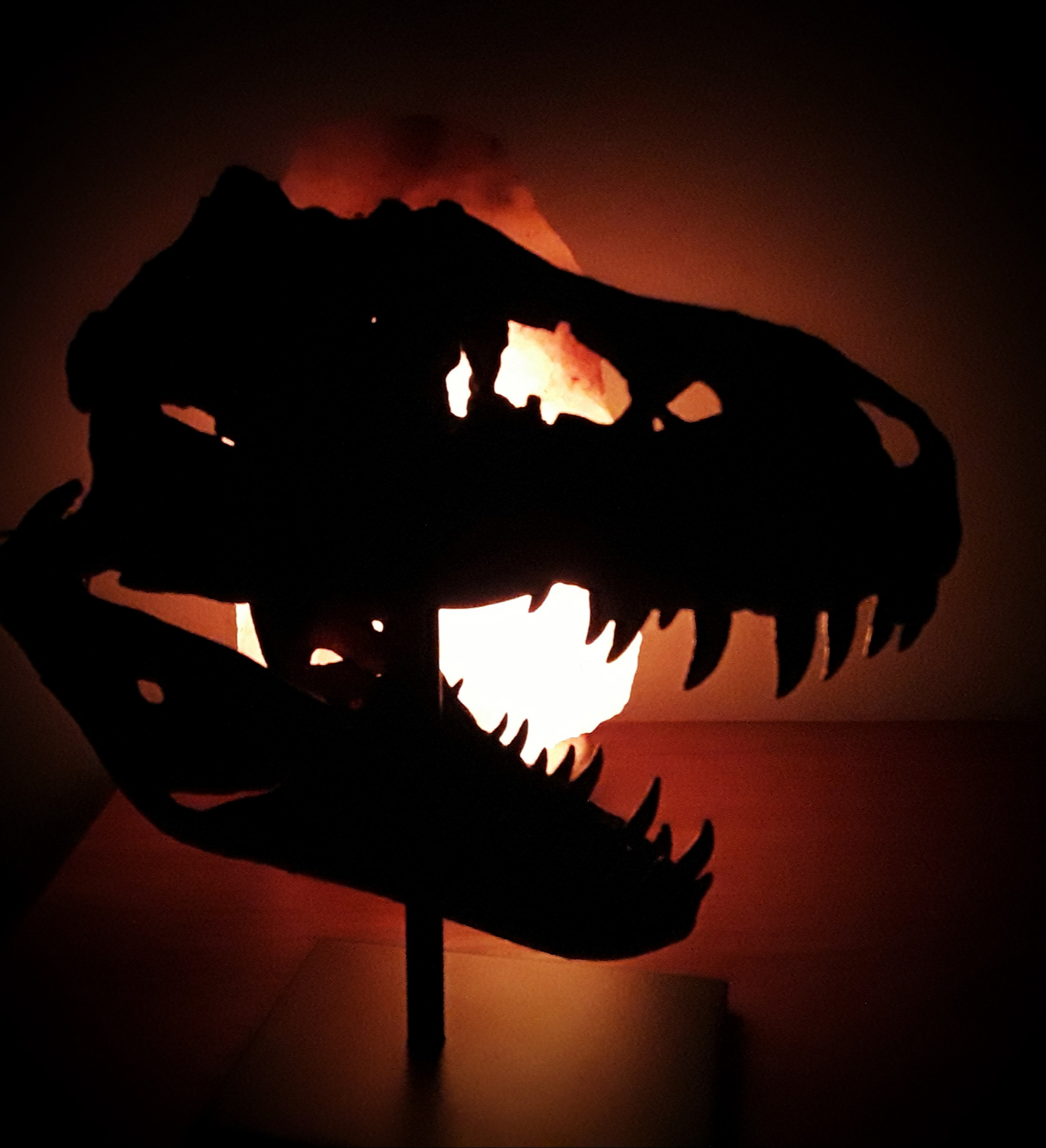

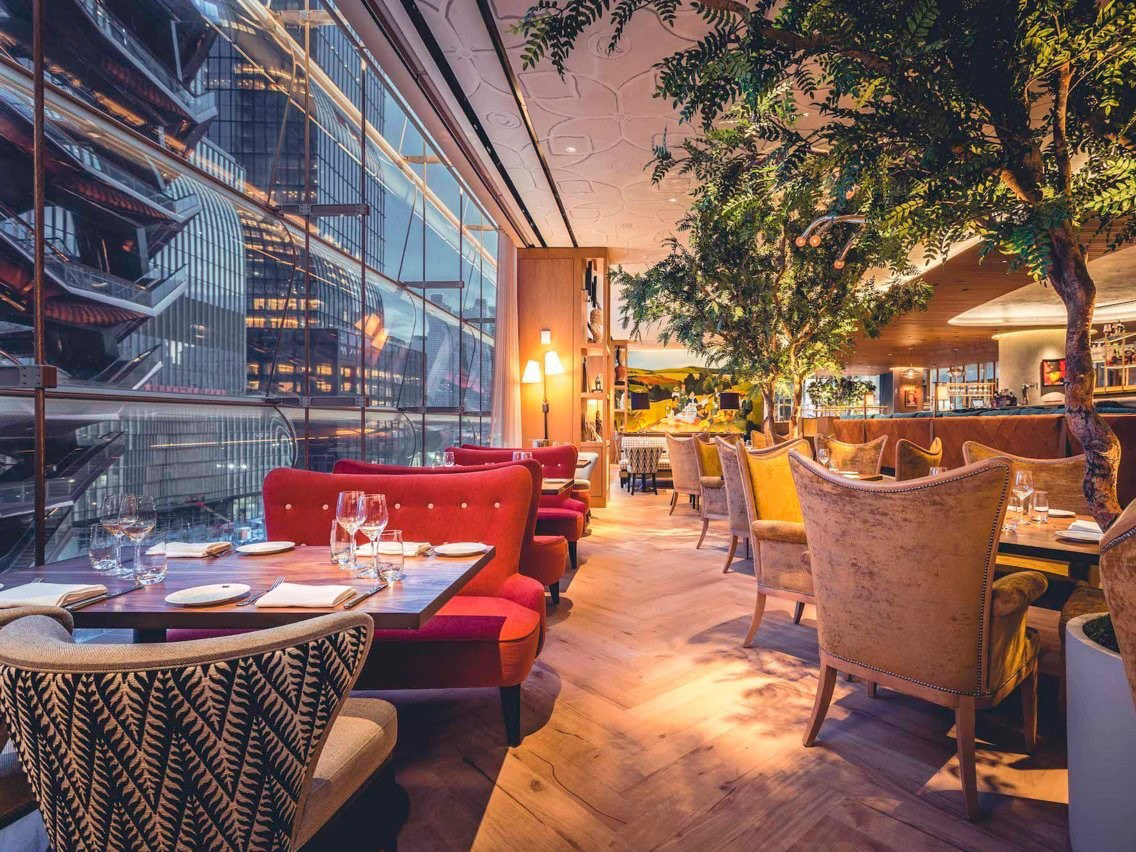

Moodboard + Light Experimentation

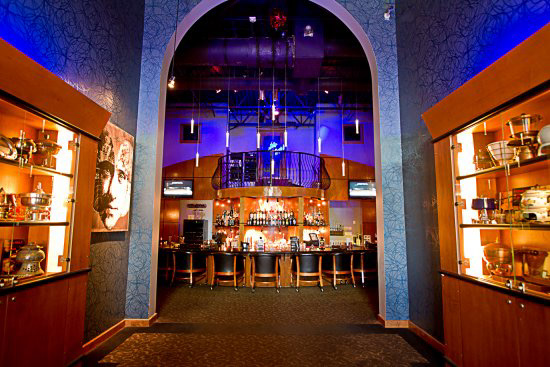

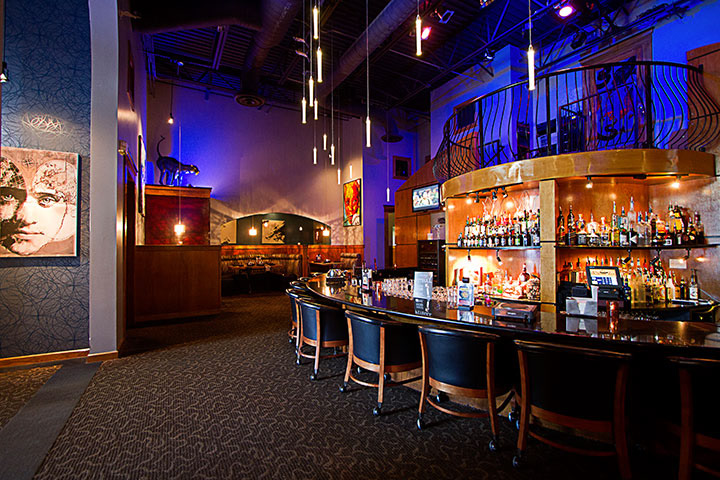

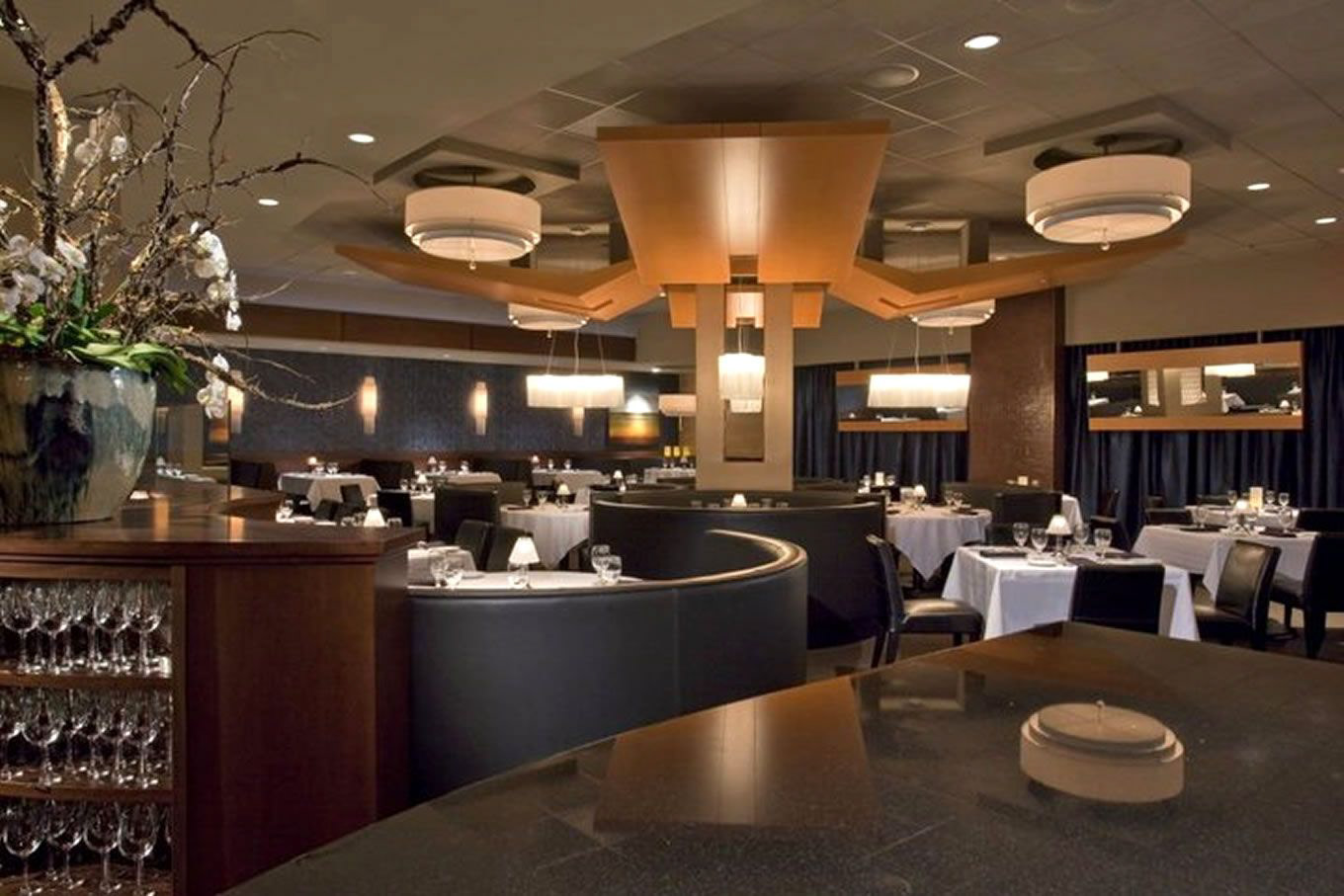

My chosen environment for this lamp would be a fine-dining middle-eastern restaurant; specifically the Al Mahara at the Burj Al Arab
 The goal for my lamp was to make sure that I created a dim, comforting ambience for the restaurant that It would be designed for.


Initital Concepts

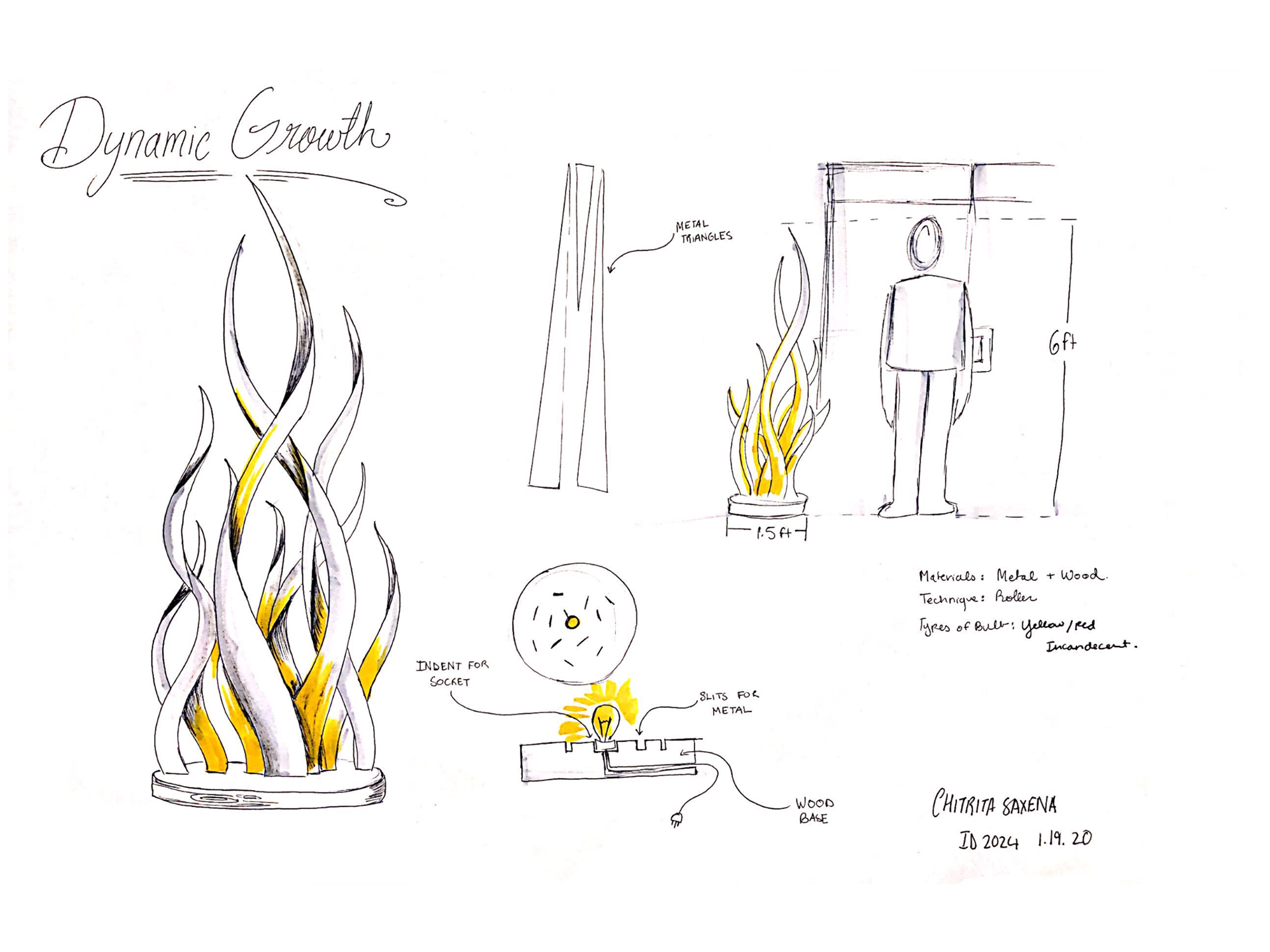

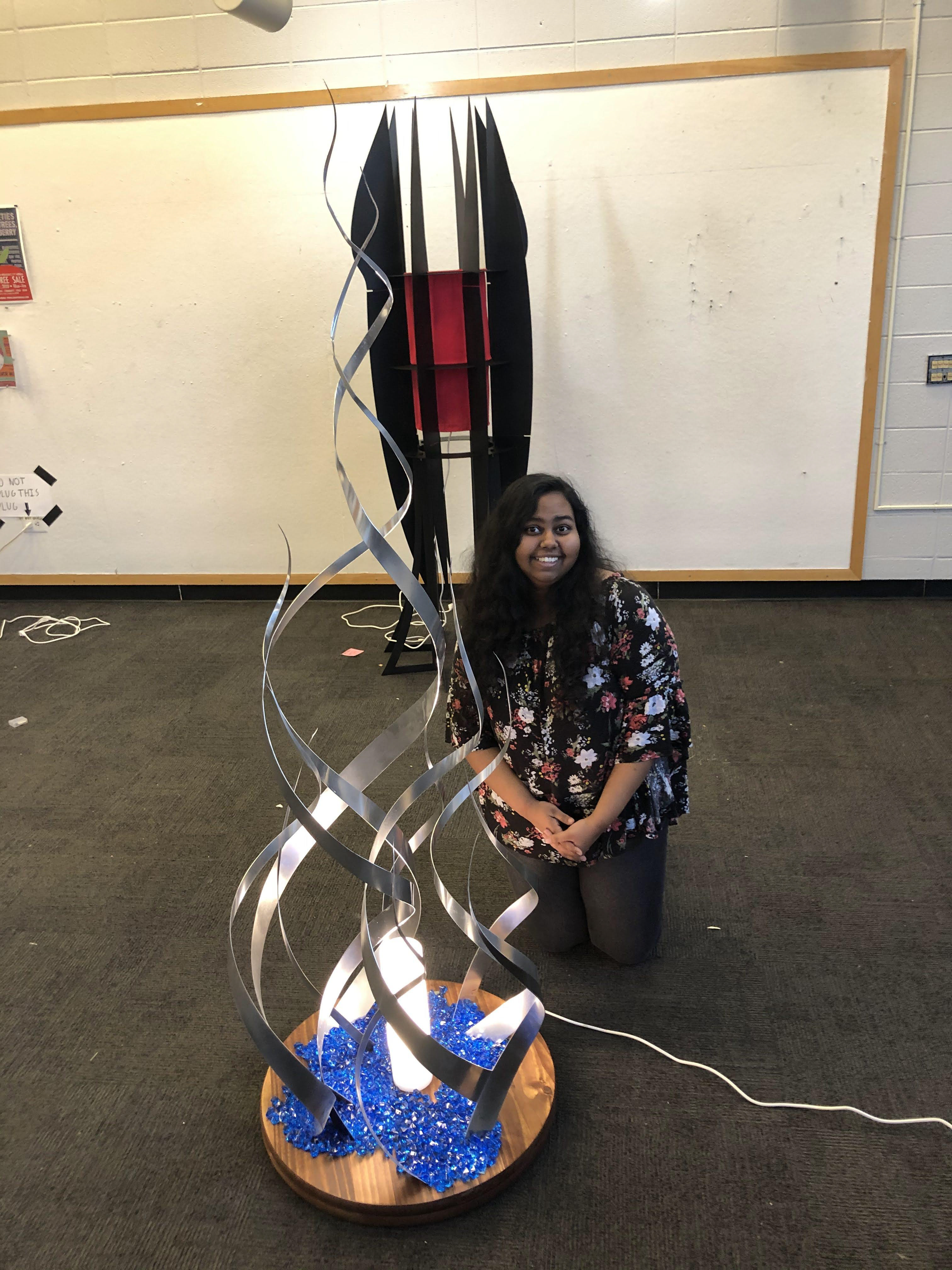

Final Concept

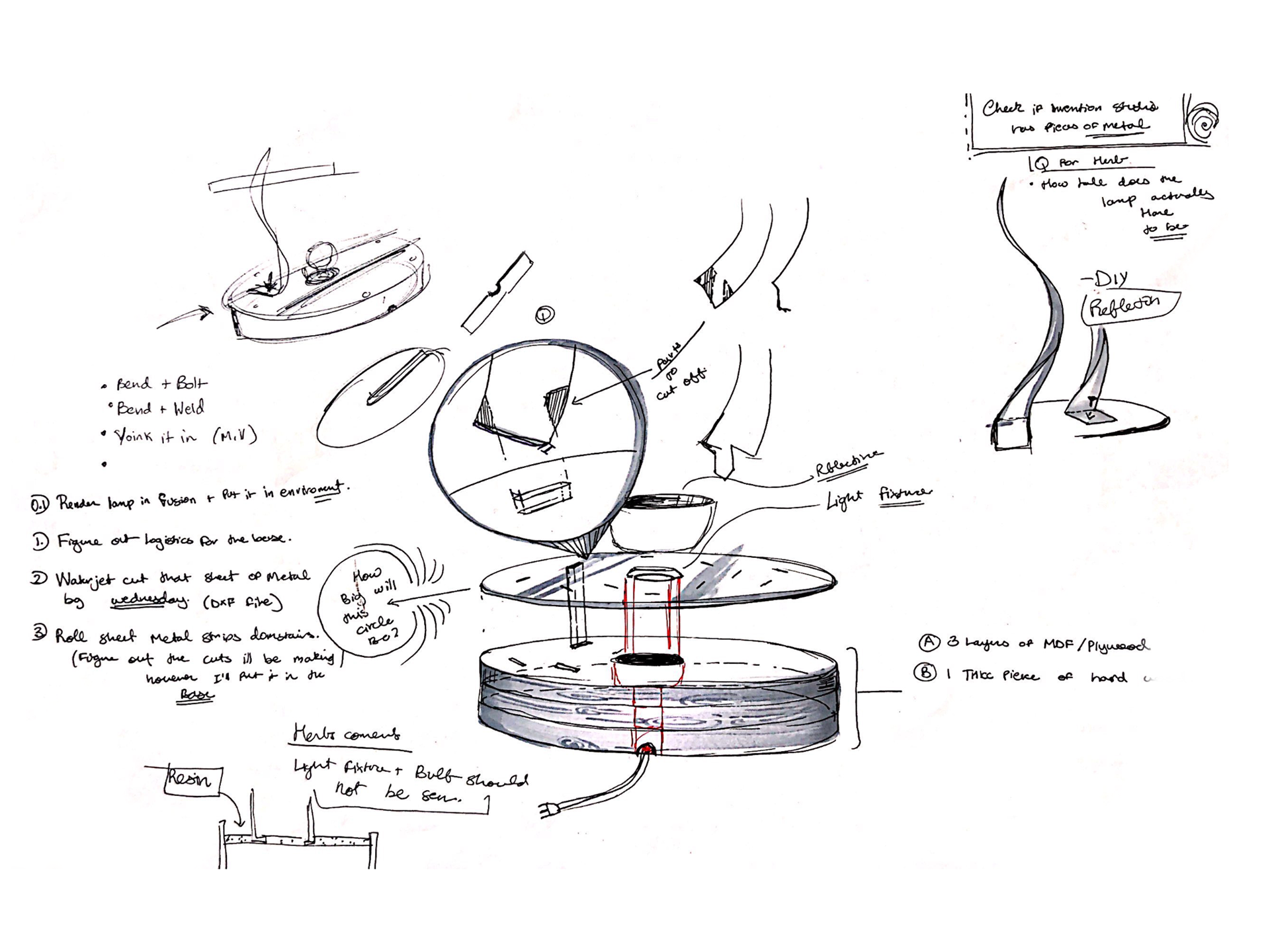

Attachment Plans

Prototyping & Almost failing
1/4th scale: Doesn't look great but it works!
1/4th scale: Doesn't look great but it works!

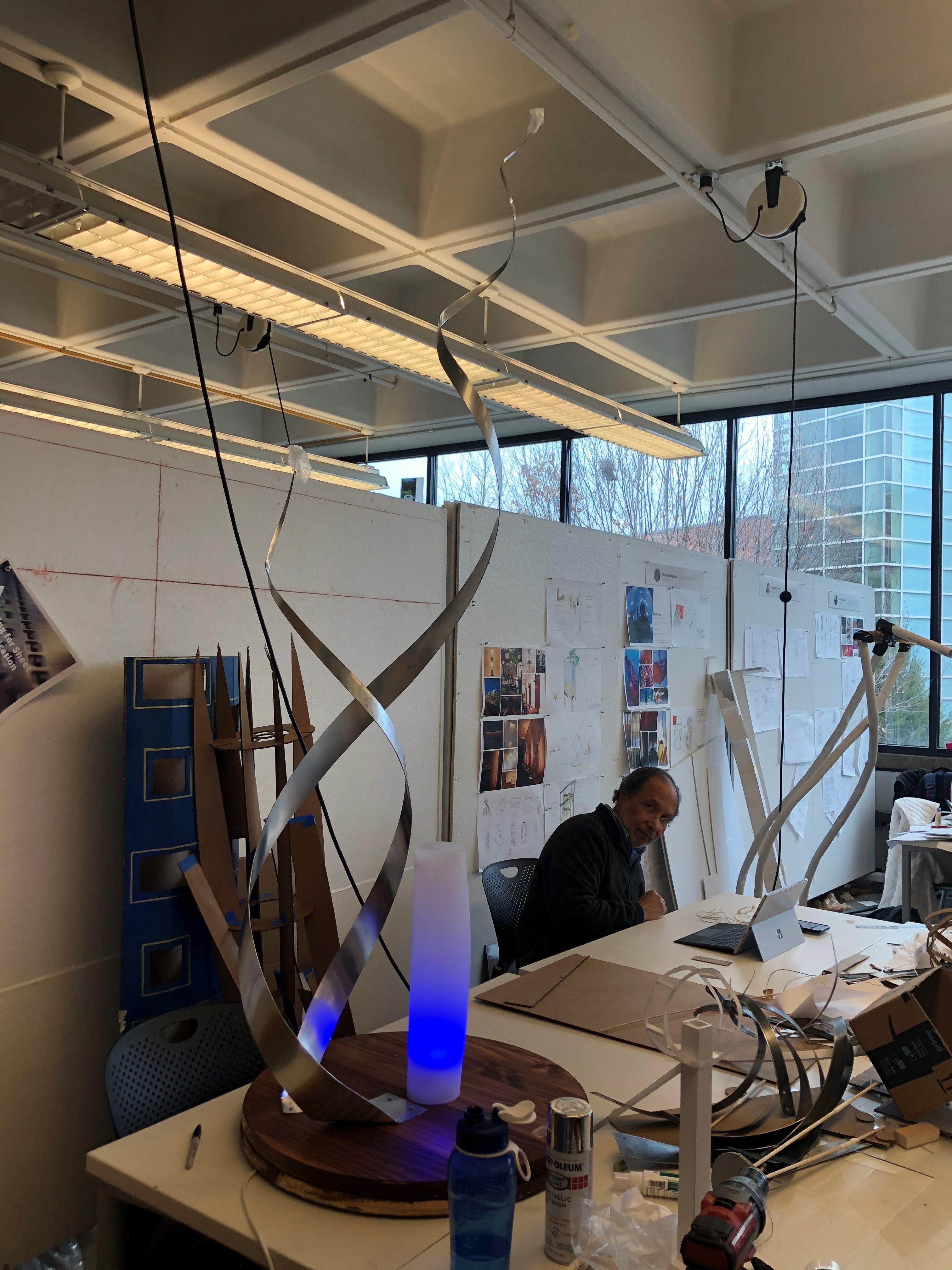

Full Scale Frankenstein model: This isn't going to work...
Full Scale Frankenstein model: This isn't going to work...

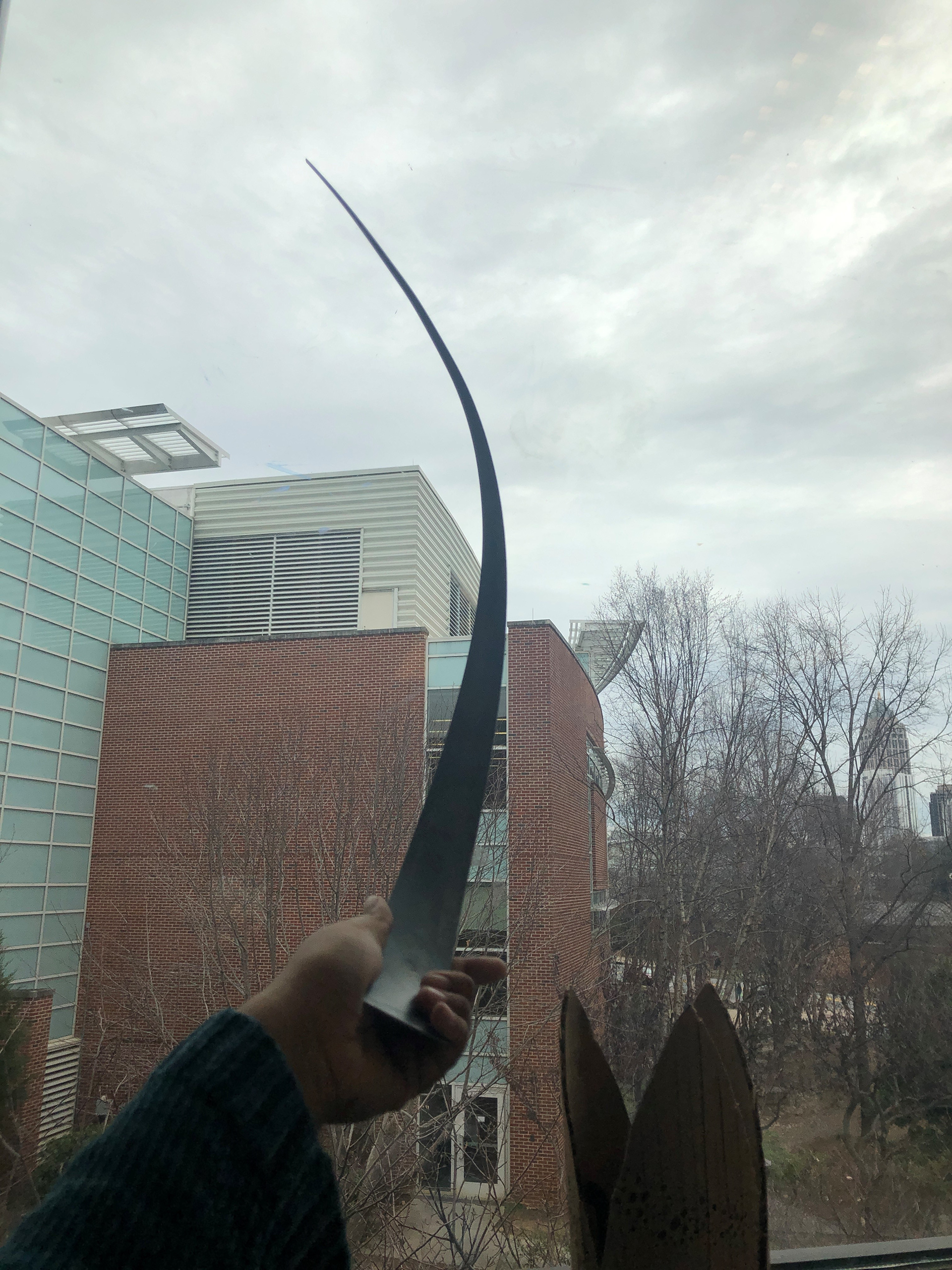

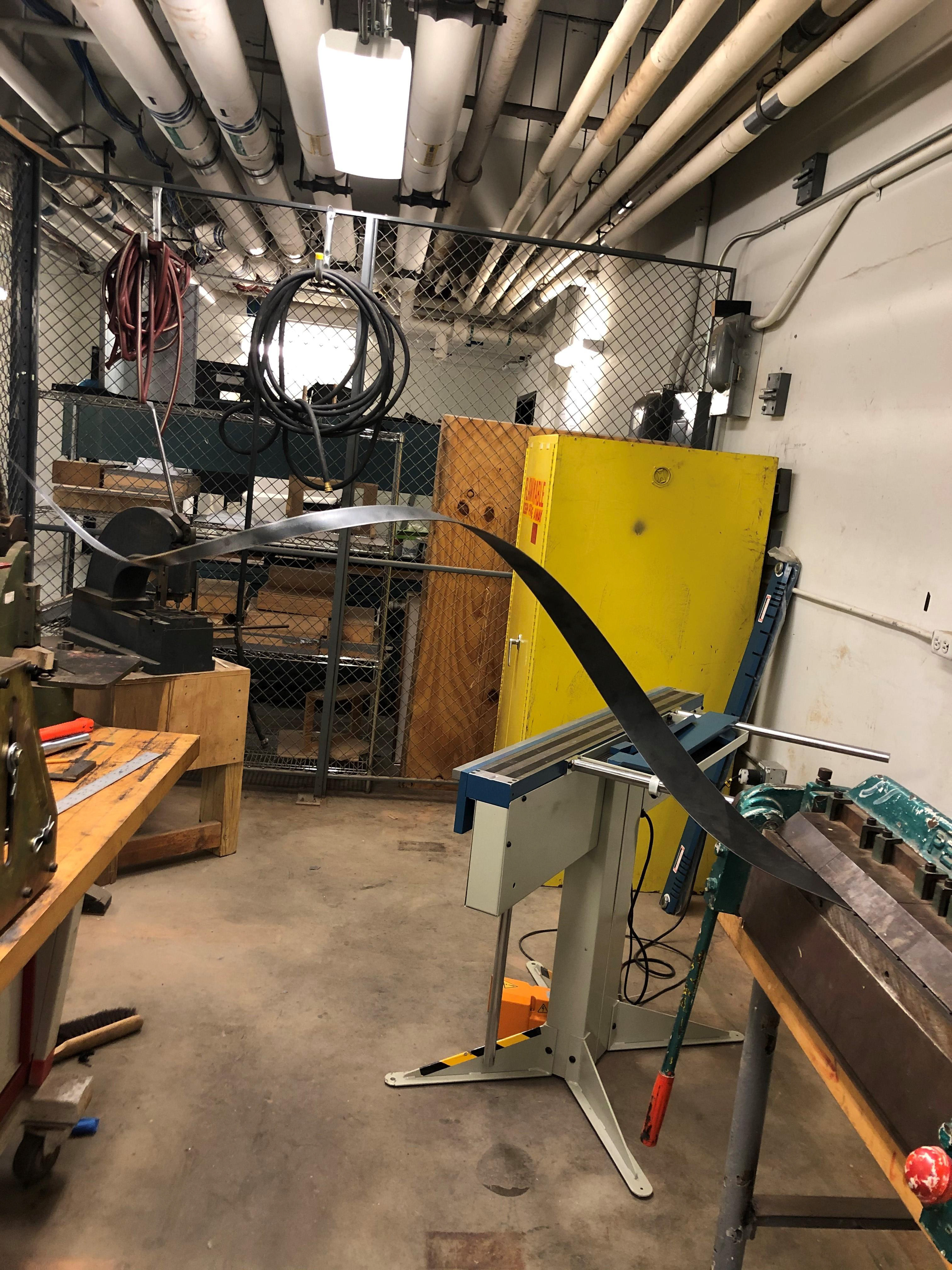

Test with actual metal: Alright. This might Work.
Test with actual metal: Alright. This might Work.

The Ideal Plan.

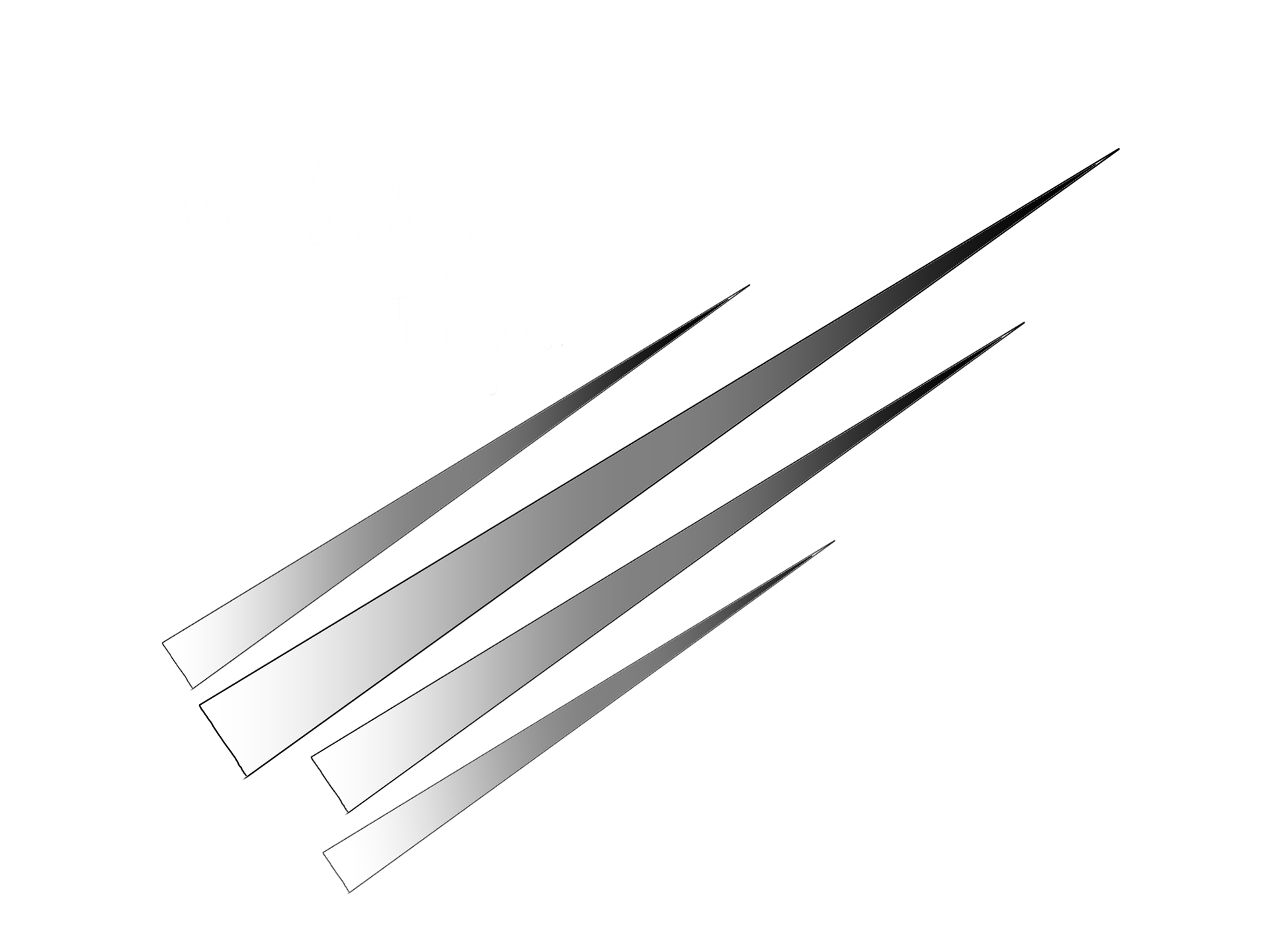

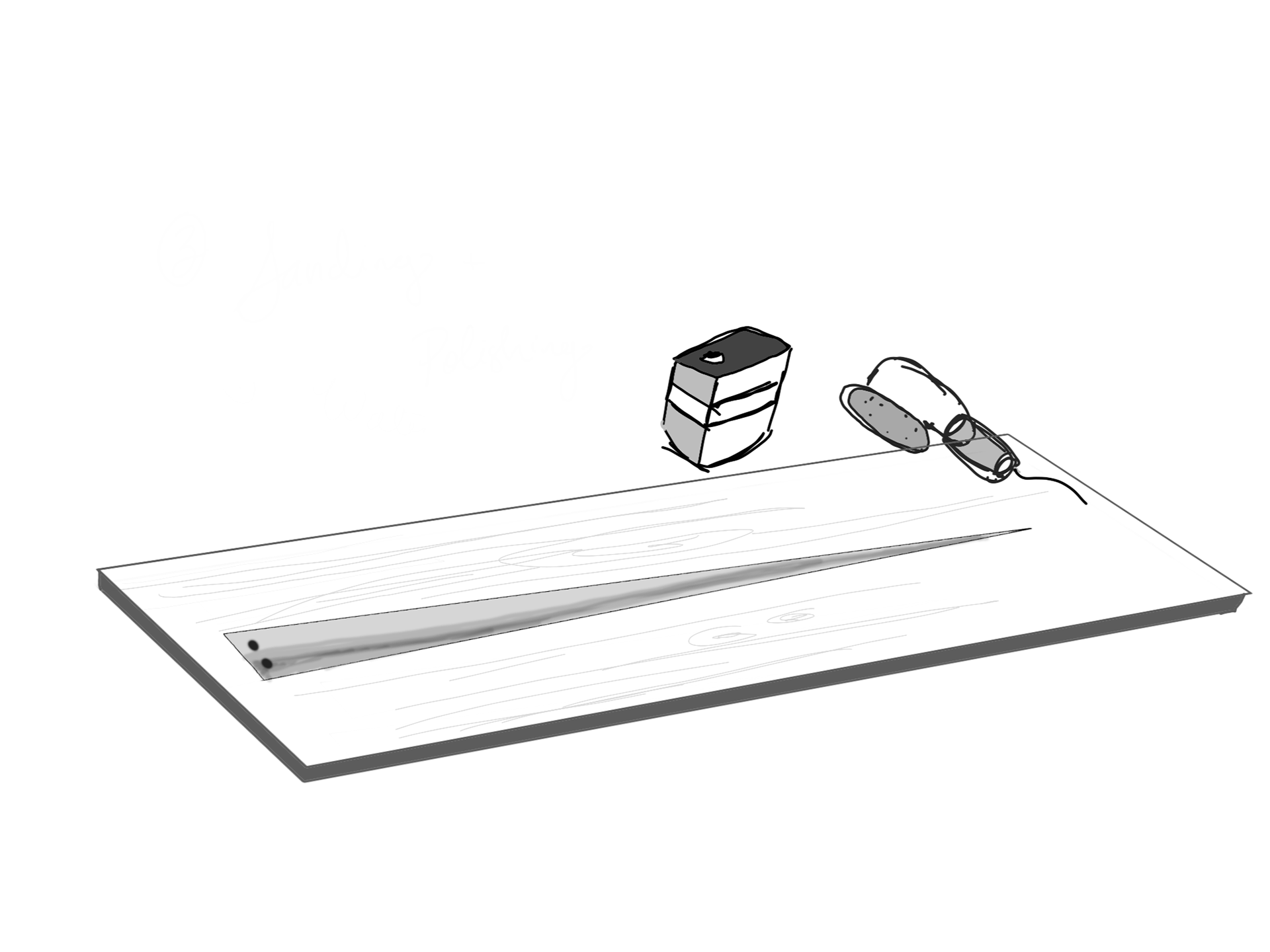

1.  Waterjet and angle-grind metal triangles of various sizes.

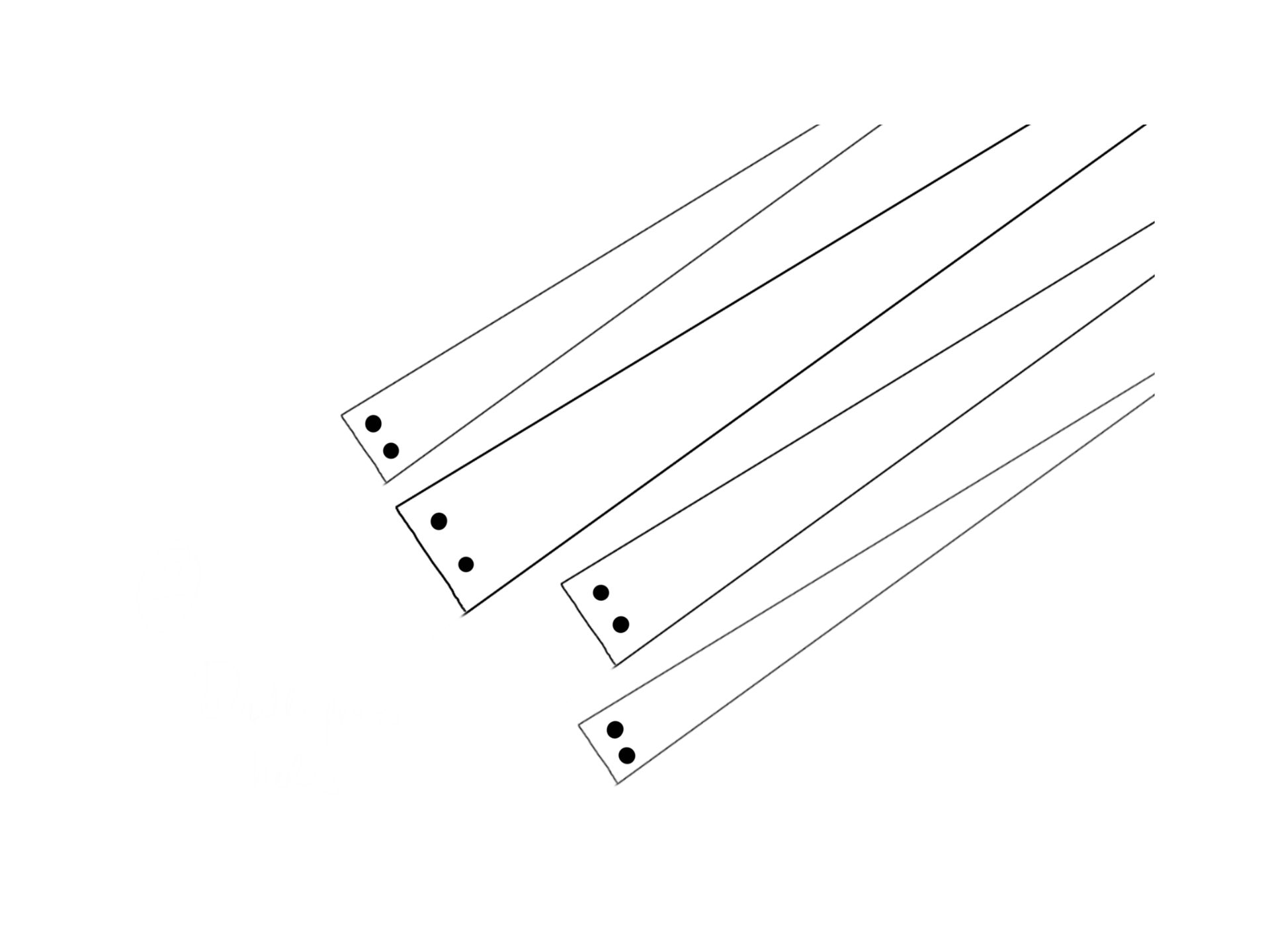

2. Drill Holes at base of the triangles

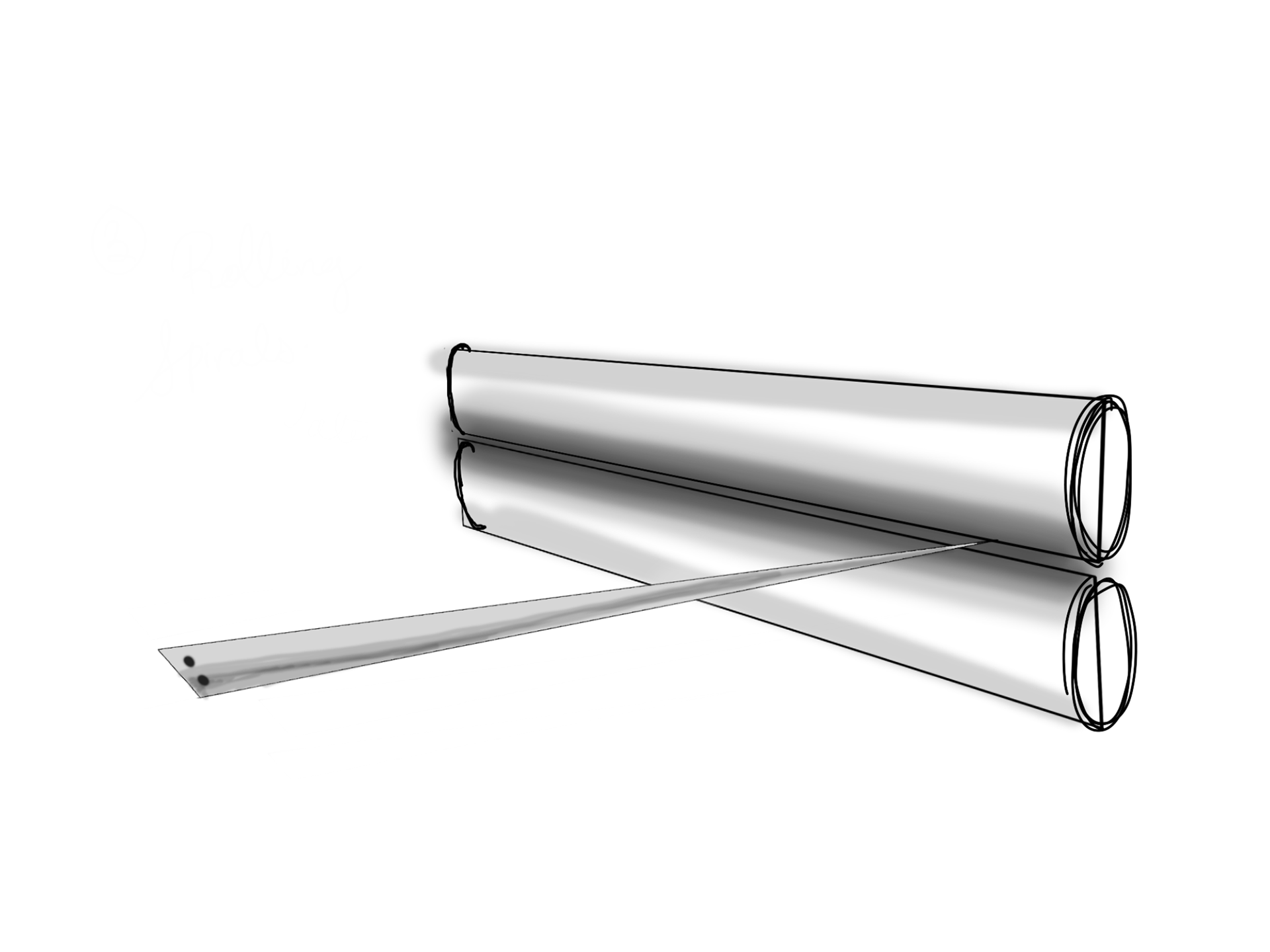

3.  Pull metal triangles throught the English Wheel (metal roller) at various angles and heights to create spirals
  4.  Sand, Buff, and Polish
5. Bend base of spiral at appropriate angles for fixture
Progress Photos
Lots of polishing to be done!
Lots of polishing to be done!

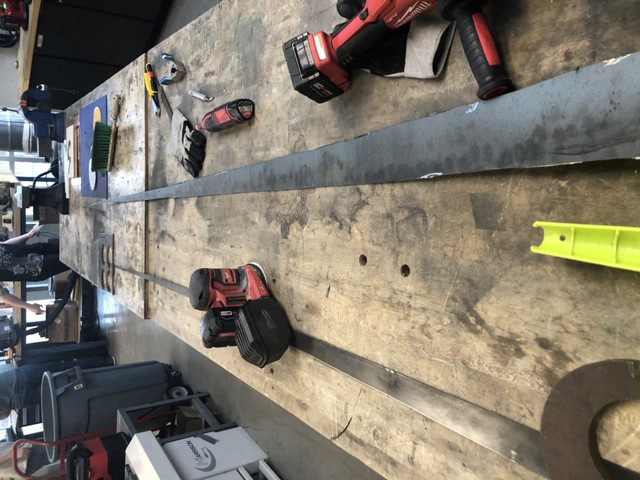

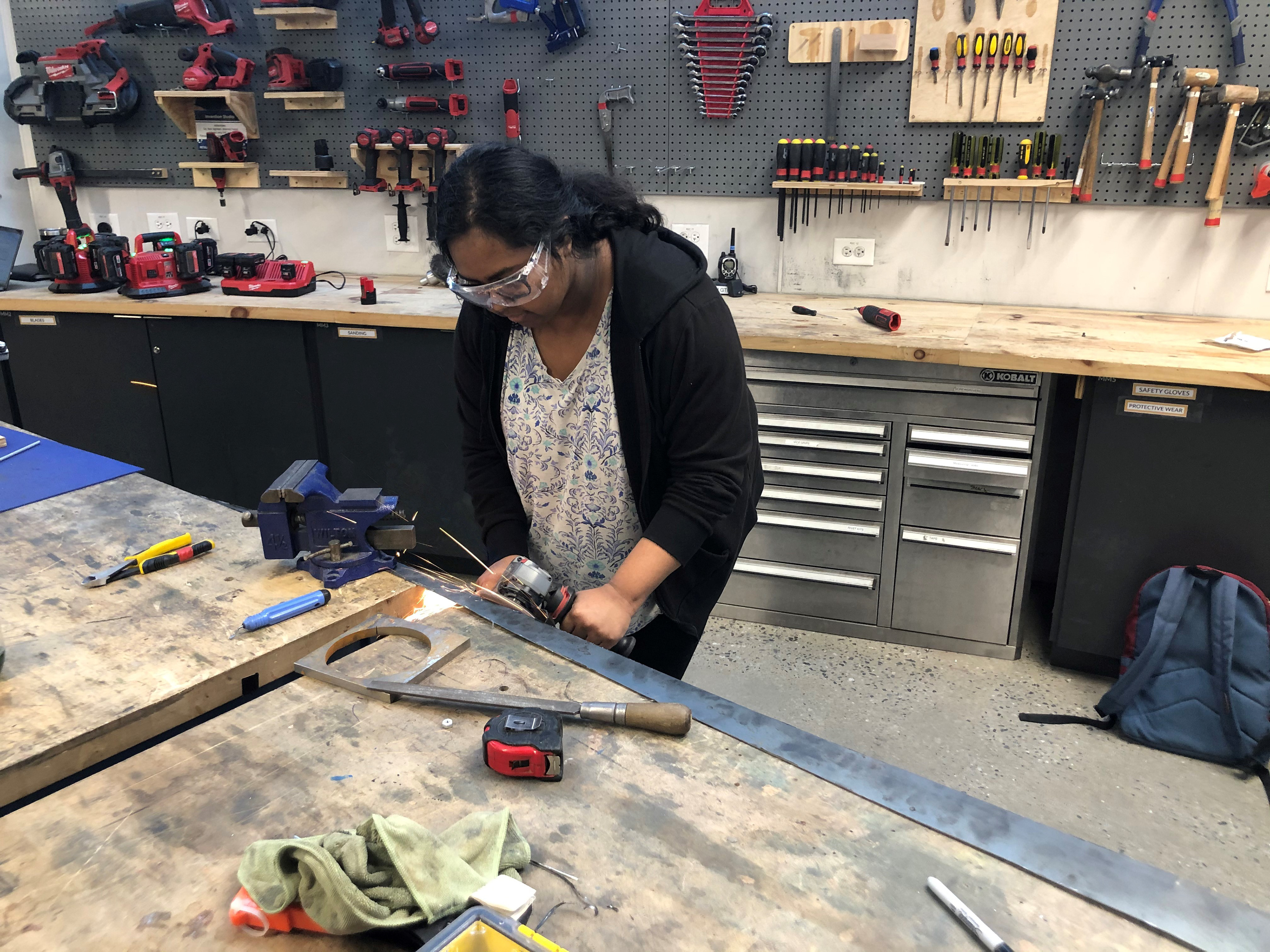

Sanding, Grinding, Buffing, Polishing
Sanding, Grinding, Buffing, Polishing
Beginning construction
Beginning construction

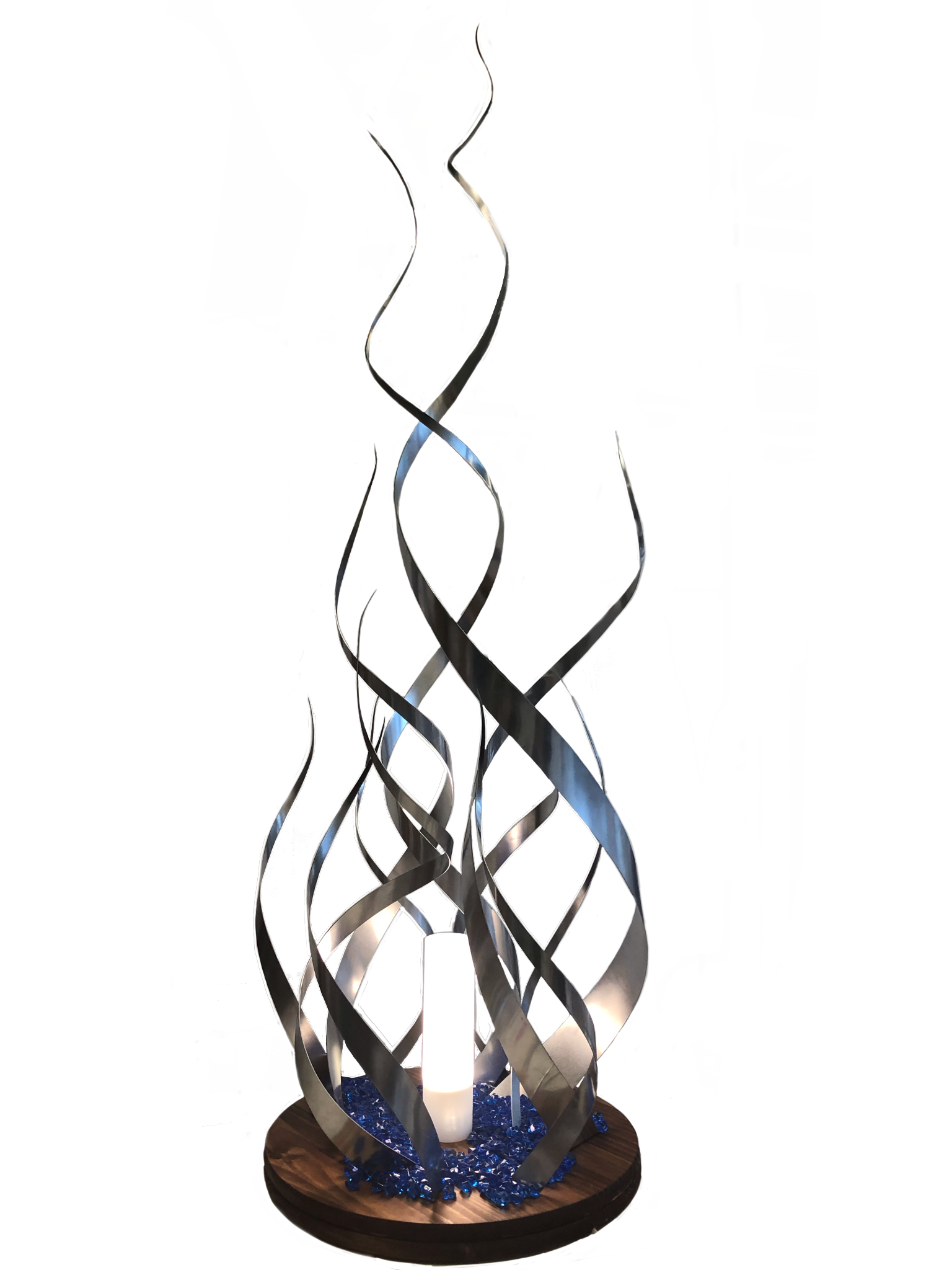

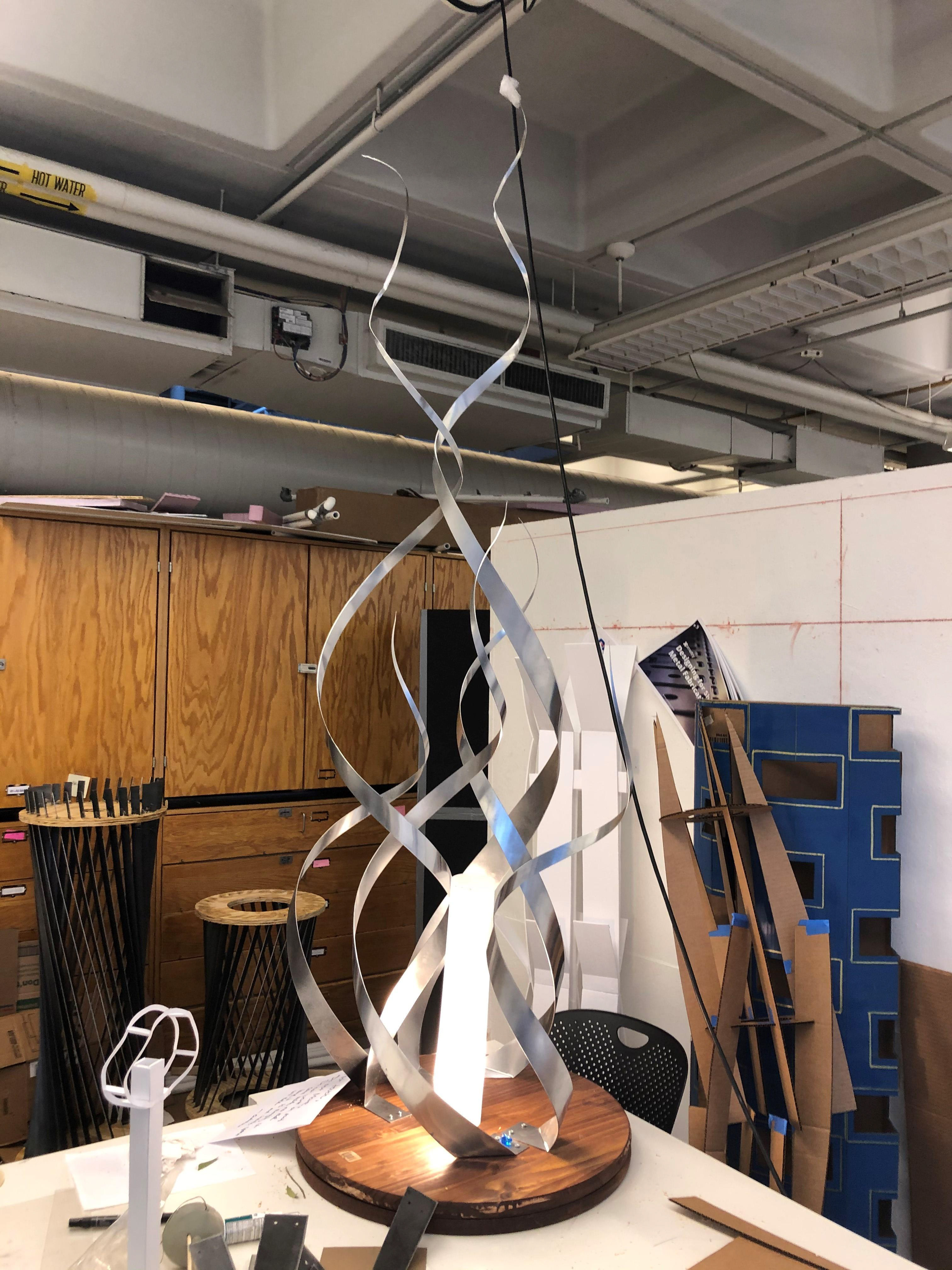

IT's coming to life!
IT's coming to life!

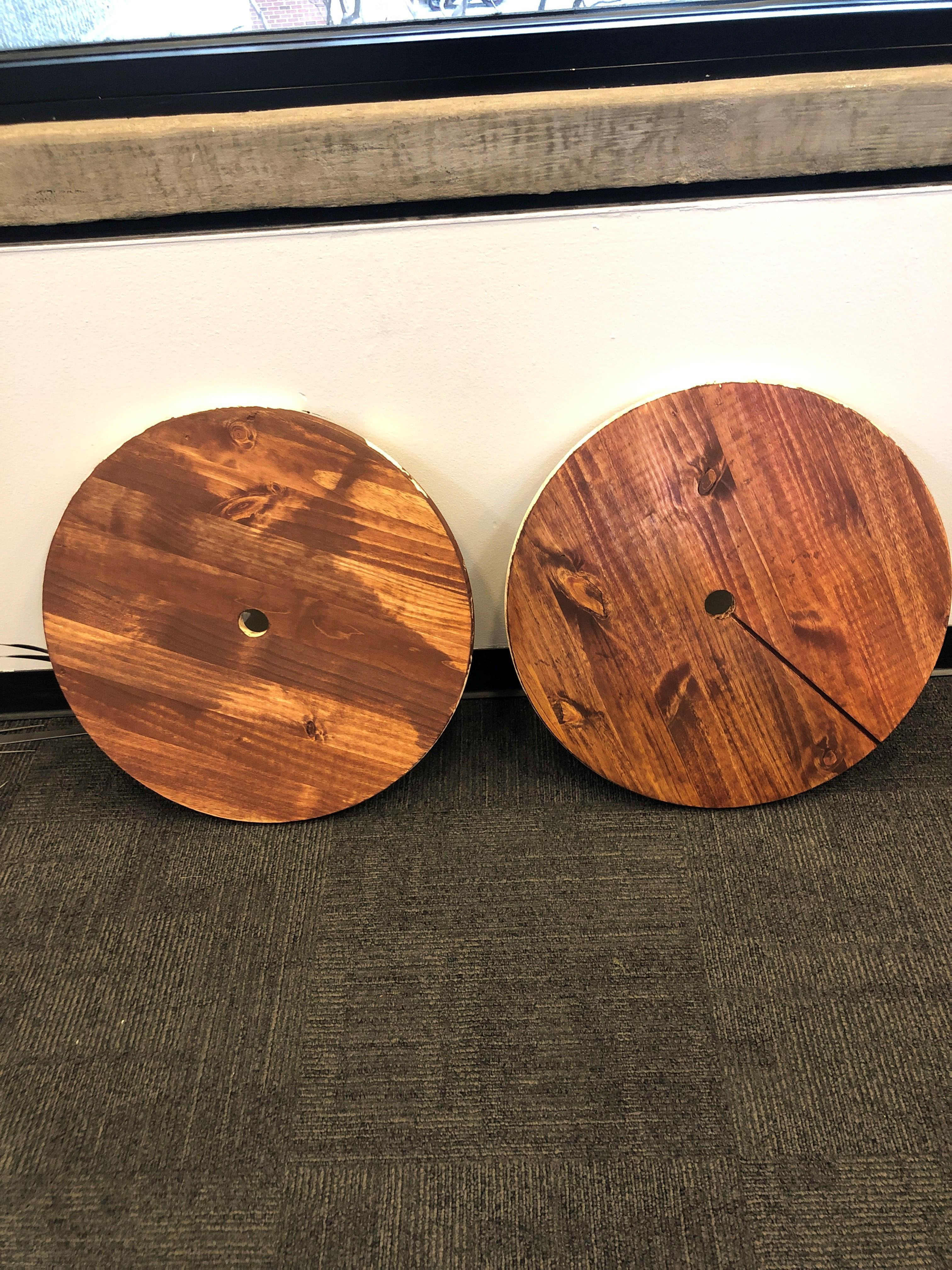

Preparing the base
Preparing the base
Using the Bending Break!
Using the Bending Break!

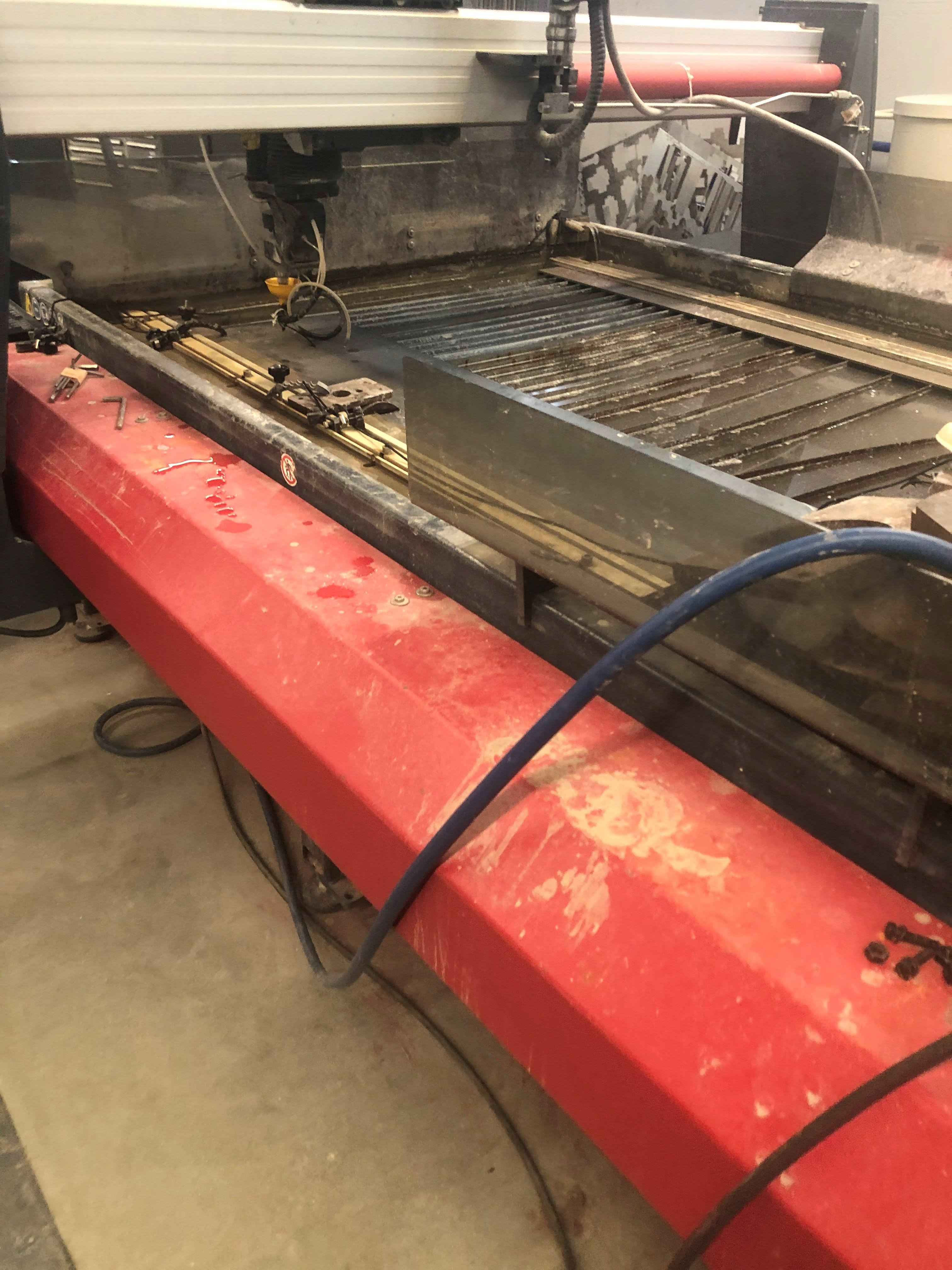

Waterjetting for hours!
Waterjetting for hours!
